ImpulseRC Apex 5" Frame
The Apex shatters the glass ceiling in freestyle frame design.
INTRODUCING THE FUTURE OF FREESTYLE
THE APEX SHATTERS THE GLASS CEILING IN FREESTYLE FRAME DESIGN.
Through a process of continuous refinement and always striving to improve we have created a new breed of freestyle frame. The Apex does not compromise in stiffness or durability, so you never have to choose between confidence and performance.
Unique design elements new to the FPV world make your build and maintenance more simple than ever before. Toughness of the frame itself is increased while also offering much better protection for your investment in flight electronics.

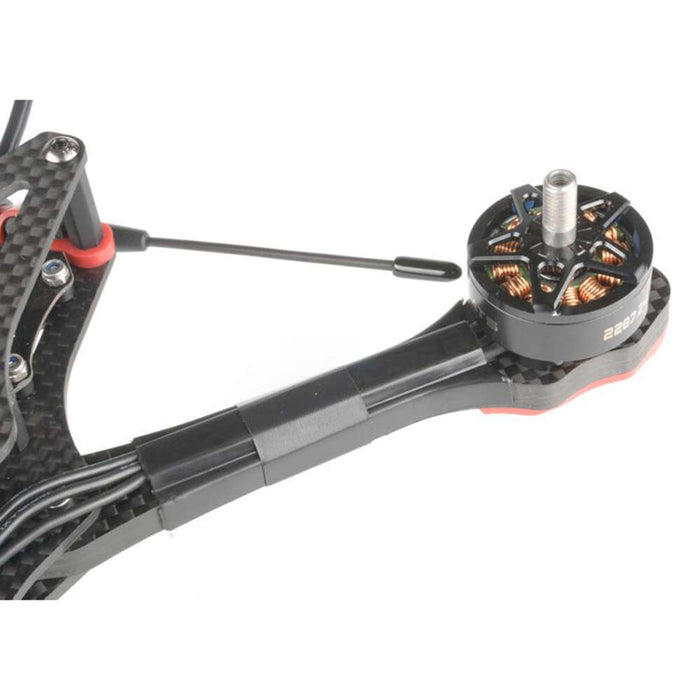

APEX ARM DESIGN
The arms of an FPV frame are the key structural component which translate the thrust from the motors to the majority of the mass in the aircraft, which is secured to the body of the frame. The design of the arms and how they are attached to the body is one of the most vital aspects that influences the performance of an FPV frame.
There are multiple problems which can occur with existing arm designs which can lead to poor performance, difficulty tuning and added cost. The Apex addresses all of these problems with a simple and unique new design that eliminates all arm slop and drastically increases durability.
Symmetrical arms make it possible to pocket one side of the part without introducing the need for distinct left and right arms, making you require more spare parts. We use a pocket instead of a hole under the motor to increase durability and we embed a press nut to simplify attachment and avoid clearance issues under your stack.
Flight electronics are mounted to the upper main plate using countersink bolts. This completely decouples the arm attachment from the electronics mounting. Arms can be replaced using two bolts without any disturbance to your stack.
SHOULDER BOLTS AND THREADLOCKER
KEY TO THE APEX

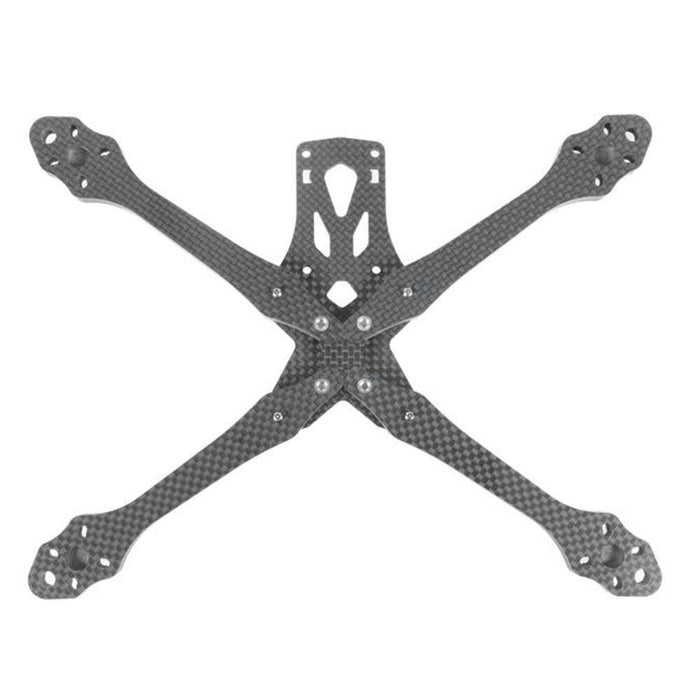

At the apex of a masonry arch a keystone locks all the stones in to position and allows the arch to bear weight and be self supporting. A keystone is a hallmark of strength and good design, the Apex FPV frame is no different and the carbon key sits at the heart of the frame to distribute forces applied to the arms.
- Arms: 5.5mm
- Key: 5mm
- Lower Main: 2.5mm
- Upper Main: 2mm
- Top: 2mm
- Camera Sides: 2mm
- Front: 28mm
- Rear: 20mm
- Alu hardware: approx. 115g
- Steel hardware: approx. 125g
MOTOR TO MOTOR
- 225mm - Fits 5.2" Props
- Compressed X using
- Pythagorean triple 3:4:5
The Apex frames comes with a full 2 year warranty on all carbon and metal parts.
Using advanced image recognition and statistical analysis ImpulseRC has simplified the warranty process to the point that most claims will be self-service and instantly approved.
Each Apex frame will be shipped with a warranty card which includes the globally unique serial number for that frame. In most cases this will remove any need to provide proof of purchase when registering your warranty. Once a frame is registered, claims for that model in the future will be quick and painless.
ImpulseRC stands behind their products and they want to give you the peace of mind to know you are covered, no matter how hard you push your flying.
