MAMBA MK4 F722 APP Flight Controller 30mm/M3

by Diatone
Original price $58.50 - Original price $58.50
Original price
$58.50
$58.50 - $58.50
Current price $58.50

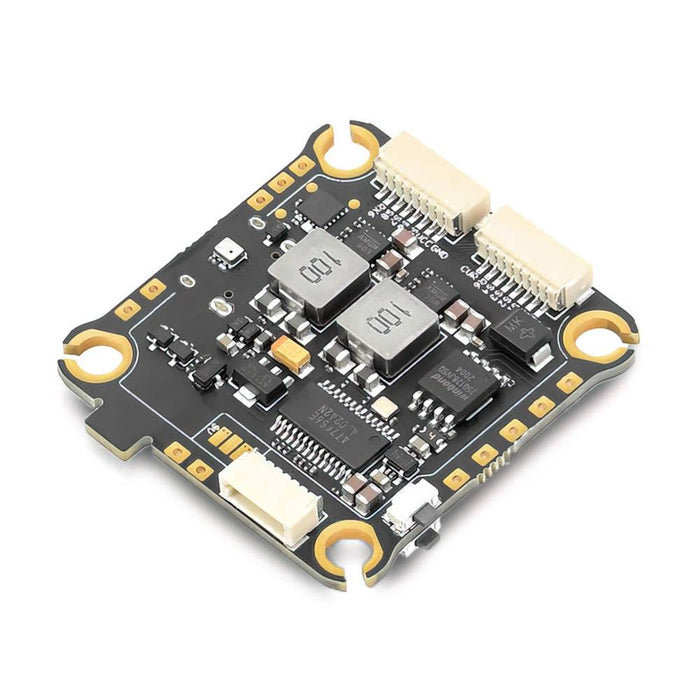

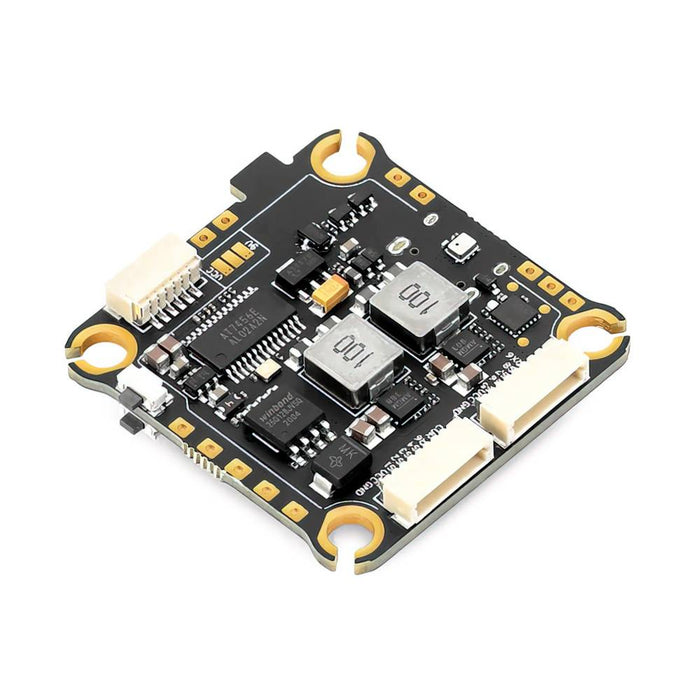

The Diatone Mamba MK4 is an F722 flight controller. With WiFi capabilities through the SpeedyBee APP, this stack is the perfect addition to your FPV build. This version has an IMC42688P Gyro.

Features

  • 30.5 x 30.5mm Mounting Pattern
  • 16M Flash Memory Blackbox
  • 3~6S Lipo (12.6~25.2V) Input
  • WiFI SpeedyBee Capabilities
  • MAMBA MK4 F722 APP FC
  • ICM42688P GYRO
  • 6 Uarts
  • Buzzer
  • OSD
Diatone Mamba MK4 F722 APP WiFi Flight Controller

Specifications

  • Receiver: TBS/SBUS/|IBUS/DSM
  • Mounting: 30.5x 30.5mm/M3
  • Receiver Protection: Yes
  • Blackbox: 16M Memory
  • Size: 38.0x40.5x8mm
  • WIFI: SpeedyBee APP
  • Frequency: 216MHz
  • Software: Betaflight
  • BEC Protection: Yes
  • TVS Protection: Yes
  • AIR UNIT Port: Yes
  • MCU: STM32F722
  • Gyro: IMC42688P
  • ESC Signal: 8 Set
  • Buzzer Pad: Yes
  • VTX Switch: Yes
  • OSD: AT 7456E
  • BEC 3.3V: 0.5A
  • CURR Pad: Yes
  • Input: 6S Lipo
  • MB LED: Yes
  • Weight: 10g
  • BF LED: Yes
  • Uarts: 6 Set
  • BEC 9V: 3A
  • BEC 5: 3A
  • F.Port: Yes
  • 12C: Yes

Includes

  • 1x Diatone MAMBA MK4 F722 APP (WiFi) Flight Controller - IMC42688P
  • 5x M3 ESC Isolation Dampers
  • 5x M3 Silicone Dampers
  • 1x 6-Pin Air Unit Cable
  • 2x 8-Pin Cable
